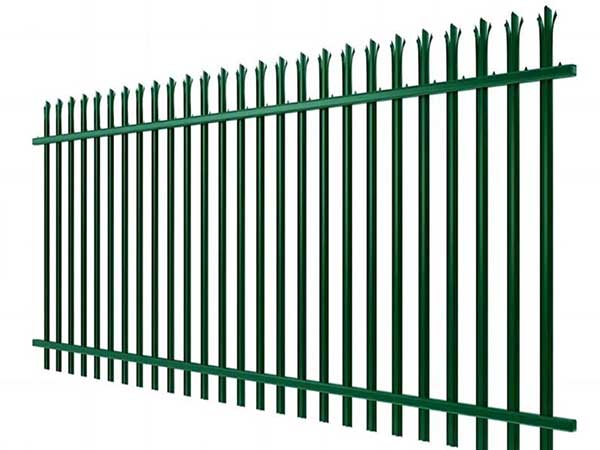

Palisade Fence
Palisade Fence is one of fencing series. It is used in Europe and Africa at first. Now Palisade fence is widely used at home and abroad. Palisade fencing instead of the brick wall or heavy fence makes your life environment clear.it is widely used because of people's environment pursuit, publicity of personal cleanliness and pursuit of foreign style. Palisade fencing with beautiful structure and various styles are popular and widely used.
| Specification of W-Section Type palisade fence | ||||||
| Panel Size | W-Section Pale: 70 mm | Horizontal Rail | Post | |||
| Height | Width | Pale thickness | Qty: Pale | Angle Steel | Square Post | I Post |
| 1.8 m | 2.75 m | 2/2.5/3 mm | 17 pcs | 40 × 40 × 4 mm, 50× 50 × 6 mm | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm | 100 × 55 mm |
| 2.1 m | 2.75 m | 2/2.5/3 mm | 17 pcs | |||
| 2.4 m | 2.75 m | 2/2.5/3 mm | 17 pcs | |||
| 3.0 m | 2.75 m | 2/2.5/3/3.5 mm | 17 pcs | |||
| W-section Pale: 62 mm | ||||||
| 1.8 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | 40 × 40 × 4 mm, 50× 50 × 6 mm | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm | 100 × 55 mm |
| 2.1 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | |||
| 2.4 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | |||
| 3.0 m | 2.75 m | 1.5/2/2.5 mm | 17 pcs | |||
| D-Section Pale: 65 mm | ||||||
| Panel Size | D-Section Pale: 65 mm | Horizontal Rail | Post | |||
| Height | Width | Pale thickness | Qty: Pale | Angle Steel | Square Post | I Post |
| 1.8 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | 40 × 40 × 4 mm, 50× 50 × 5 mm | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm | 100 × 55 mm |
| 2.1 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | |||
| 2.4 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | |||
| 3.0 m | 2.75 m | 1.5/2/2.5/3 mm | 17 pcs | |||

As a high-security option, palisade fencing has a variety of applications. Whether it’s public, private, or commercial property, it can help you protect it.
Not only can your enclosed area be kept secure 24/7 with palisade fencing, but it can also work as an intrusion and theft deterrent.
It can also be used as an effective way to separate the site from its surroundings. Whether it’s on a hard concrete ground or a soft grass field, palisade fencing is designed to remain permanent after installation.
Additionally, the fencing can be installed on both levelled & sloping ground (up to 30 degrees). And be paired with palisade security gates for pedestrian & vehicle access (heights from 1.8m to 3.0m; widths from 1.2m to 10.0m).
For example, it can be used in:
Schools
Commercial properties
Water treatment plants
Power stations
Bus & railway stations
General fencing to establish borders
Industrial sites
Securing large amounts of stock (e.g., warehouse)
