Chain Link Fence
Chain Link Fences
Chain link fencing (also called cyclone fencing or metal wire fencing) has been around for many decades and is one of the most cost effective fences available today. This fence, in residential areas, is commonly installed at a height of 4ft tall but is also available at 5ft and 6ft heights as well.
Chain link fencing can also be made into a privacy fence with the addition of colored vinyl slats inserted into the mesh adding a whole new feature.
Material | Galvanized steel wire |
Height | 0.5m-6m |
Length | 4m-50m |
Mesh Opening | 20*20mm,50*50mm, 60*60mm,80*80mm etc |
Wire diameter | 1.0mm-6.0mm |
Technique | Woven |
Post&rail diameter | 32mm, 42mm, 50mm, 60mm, 76mm, 89mm etc |
Post&rail thickness | 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm etc |
Post type | Round post, angle post, square post, etc |

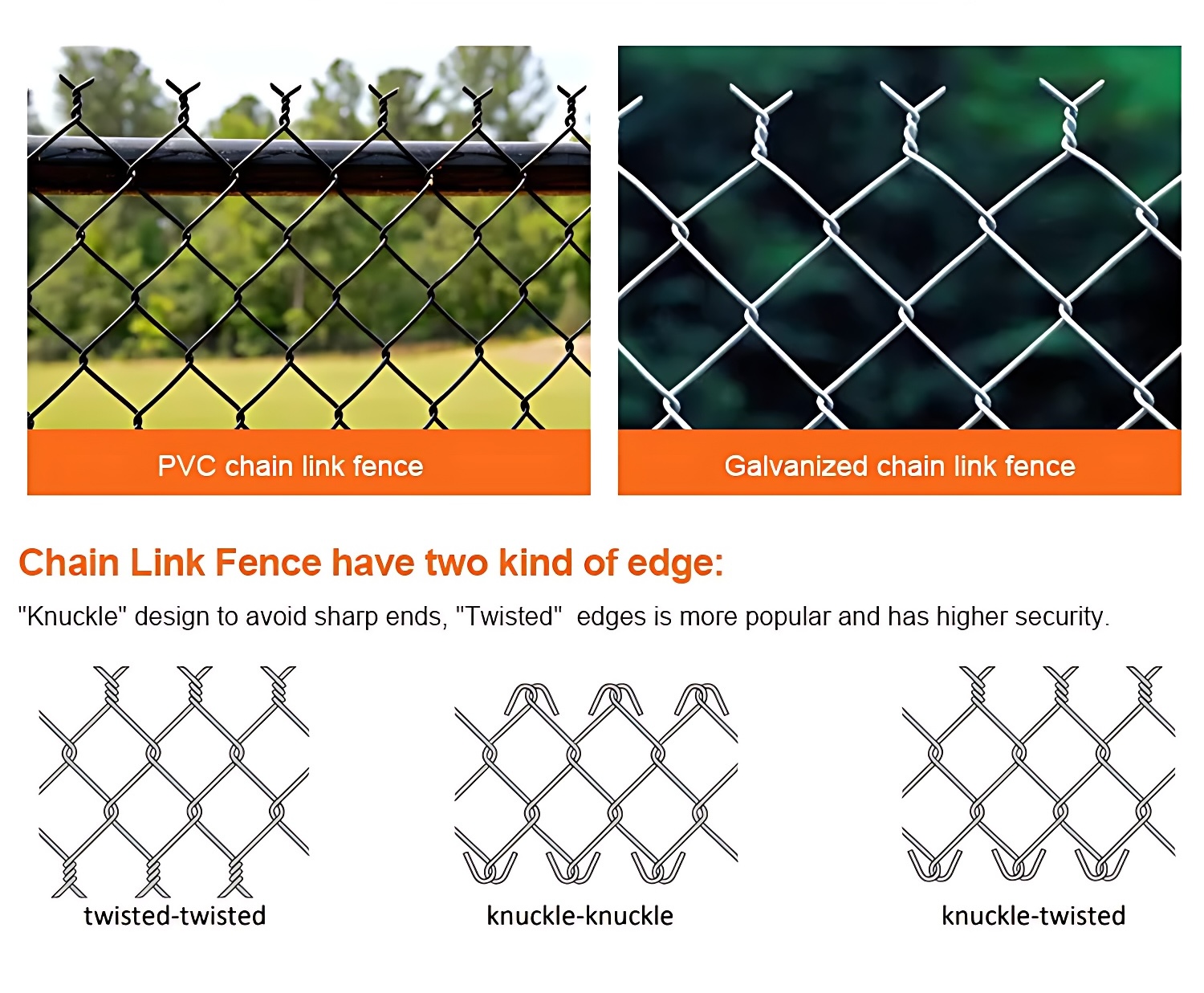

Edge type | Knuckle type, twist type, special type |
Surface treatment | Electric galvanized, hot dipped galvanized, PVC coated |
| 1.Material:Low Carbon Steel Wire,Galvanized Wire,Stainless Steel Wire 2.Wire Dia:1.2mm-5.0mm 3.Width:0.5m-5.0m 4.Length:1m-50m 5.Hole Size: 25mm,40mm,50mm,60mm,100mm,65mm,76mm,100mm 6.Edge of chain link fence:Twisted edge,Knuckle edge,Twisted knuckle edge |
| Specification of Chain Link Fence | |||||||||
| Mesh opening | 1'' | 1.5'' | 2'' | 2-1/4" | 2-3/8'' | 2-1/2" | 2-5/8" | 3'' | 4'' |
| 25mm | 40mm | 50mm | 57mm | 60mm | 65mm | 70mm | 75mm | 100mm | |
| Wire diameter | 18Ga - 13Ga | 16Ga - 8Ga | 14Ga-6Ga | ||||||
| 1.2mm-2.4mm | 1.6mm - 4.2mm | 2.0mm-5.00mm | |||||||
| Width of per roll | 50M - 100M(or more) | ||||||||
| Length of per roll | 0.5M - 6.0M | ||||||||
| Round post & rail diameter | 32mm, 42mm,48mm,60mm,76mm,89mm | ||||||||
| Round post & rail thickness | 0.8-5.0mm | ||||||||
| Surface treatment | Hot dipped galvanized or PVC coated | ||||||||
| Materials and specification can be made according to customer detailed requirements | |||||||||
| PVC coated chain link fence | |||||
| Opening | Wire Gauge | Width | Length | ||
| Inch | mm | BWG | mm | m | m |
| 1"x1" | 25mmx25mm | BWG13-BWG12 | 2.2mm-3.0mm | 0.5-5m | 1.0m-50m |
| 1-1/2"x1-1/2" | 40mmx40mm | BWG13-BWG12 | 2.2mm-3.0mm | 0.5-5m | 1.0m-50m |
| 2"x2" | 50mmx50mm | BWG12-BWG9 | 2.2mm-3.6mm | 0.5-5m | 1.0m-50m |
| 2-3/8"x2-3/8" | 60mmx60mm | BWG13-BWG9 | 2.2mm-3.6mm | 0.5-5m | 1.0m-50m |
| 2-1/2"x2-1/2" | 63mmx63mm | BWG12-BWG9 | 2.6mm-3.5mm | 0.5-5m | 1.0m-50m |
| 3"x3" | 75mmx75mm | BWG12-BWG9 | 3.0mm-3.6mm | 0.5-5m | 1.0m-50m |
| Remarks: 1. Special sizes are available upon request. 2. Packing: by pvc with both end. Customer's packing is available upon request. | |||||
| Galvanized chain link fence | |||
| OPENING | WIRE GAUGE | WIDTH | LENGTH |
| 1'' | BWG11.12.13.14.15.16.17.18 | 0.5M-5M | 1.0M-50M |
| 1.5'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.25'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.5 | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 2.375'' | BWG8,9,10,11,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 3'' | BWG8,9,10,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| 4'' | BWG8,9,10,12,13,14,15,16 | 0.5M-5M | 1.0M-50M |
| Remarks:1.Special sizes are available upon request. 2.Packing:by PVC with both end or as customer's requirement. | |||
Application
Chain link fence can be found everywhere from garden decoration to industrial facilities requiring high security fencing level. Moreover, chain link mesh is also the most popular material for building animal cages or partition panels.
