Perforated Metal Mesh
Perforated Metal Mesh form China factory for Ceilings of buildings
Perforated metal mesh

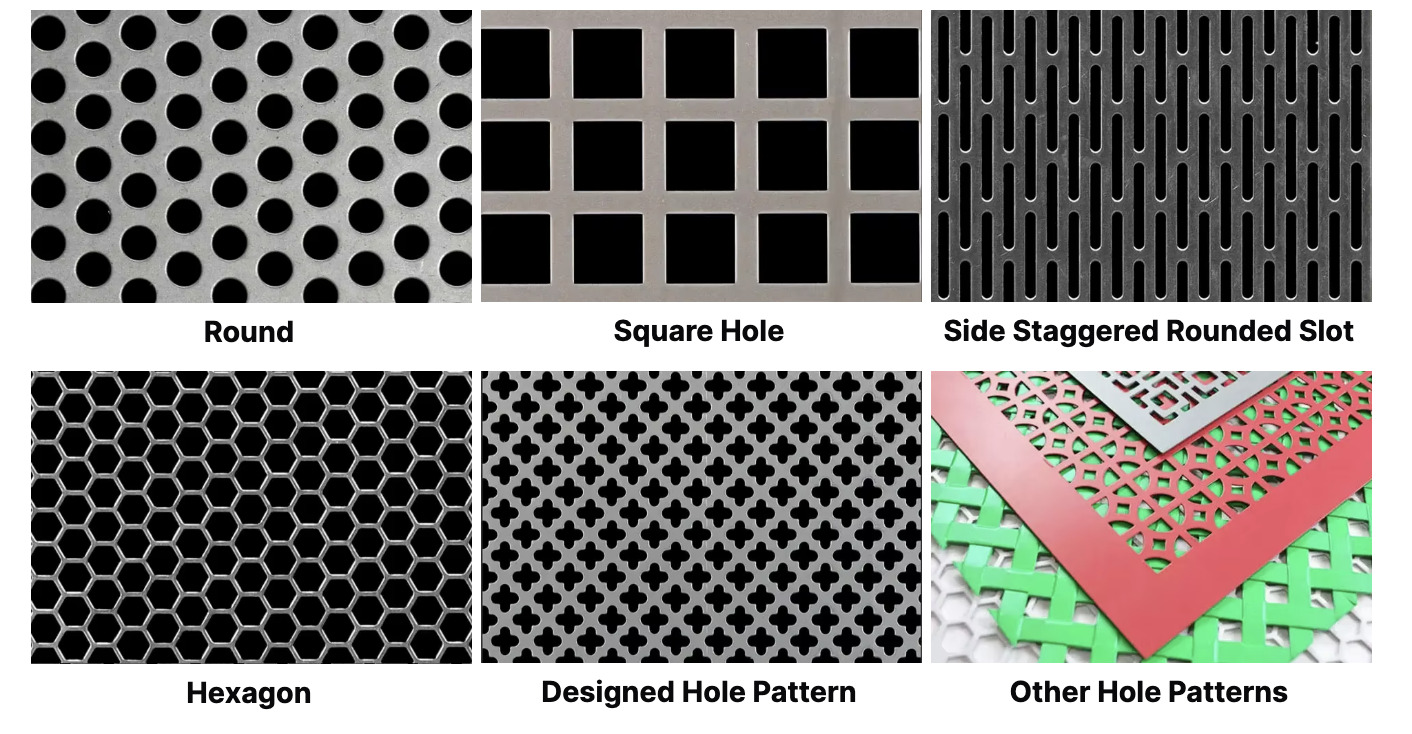

Perforated metal mesh is named perforated sheet, stamping plates, or perforated screen. It is produced from metal panels,with kinds of hole patterns,round hole,square hole,long round hole and hexagon are common.Perforated Metal Mesh is mainly made of metal,iron plate,galvanized plate,stainless steel,aluminum plate are the most commonly used.

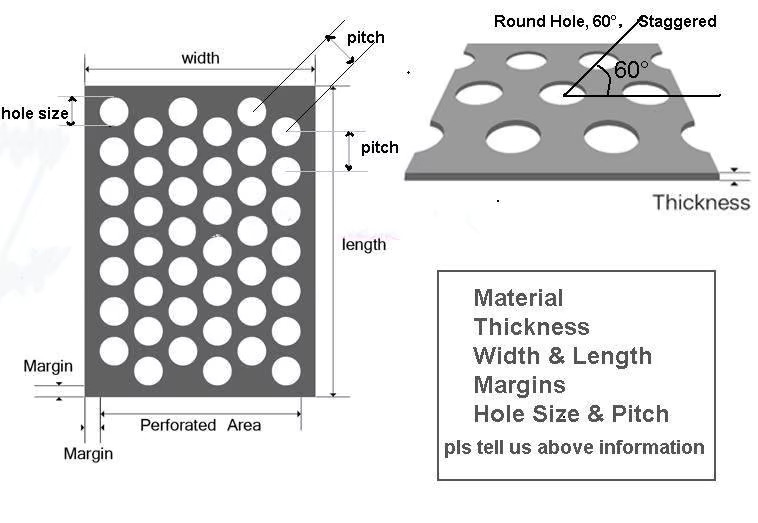

Perforated Metal is broadly used in Industrial and Architectural applications such as; oil filters,grain sifters, sound isolation and ventilation.The round hole perforation is the most popular type of perforated pattern. We can cut to size to your specific requirements.Perforated metal is described by the hole size and the pitch. The pitch is the distance from the centre of one hole to the centre of the adjacent holes.
Perforated Steel Mesh For Sale
|
Perforated steel mesh
|
|
Type
|
Plate, Roll
|
|
Material
|
 Carbon steel, Galvanized steel, Stainless steel, Aluminum steel, etc.
|
|
Thickness
|
0.2 mm – 25 mm
|
|
Hole type
|
round hole, square hole, hexagonal hole, slotted hole, etc.
|
|
Application
|
Ceilings of buildings; Sound-absorbing materials; Guards for machinery; Water filtration screens; Decorative hole plates, etc.
|
|

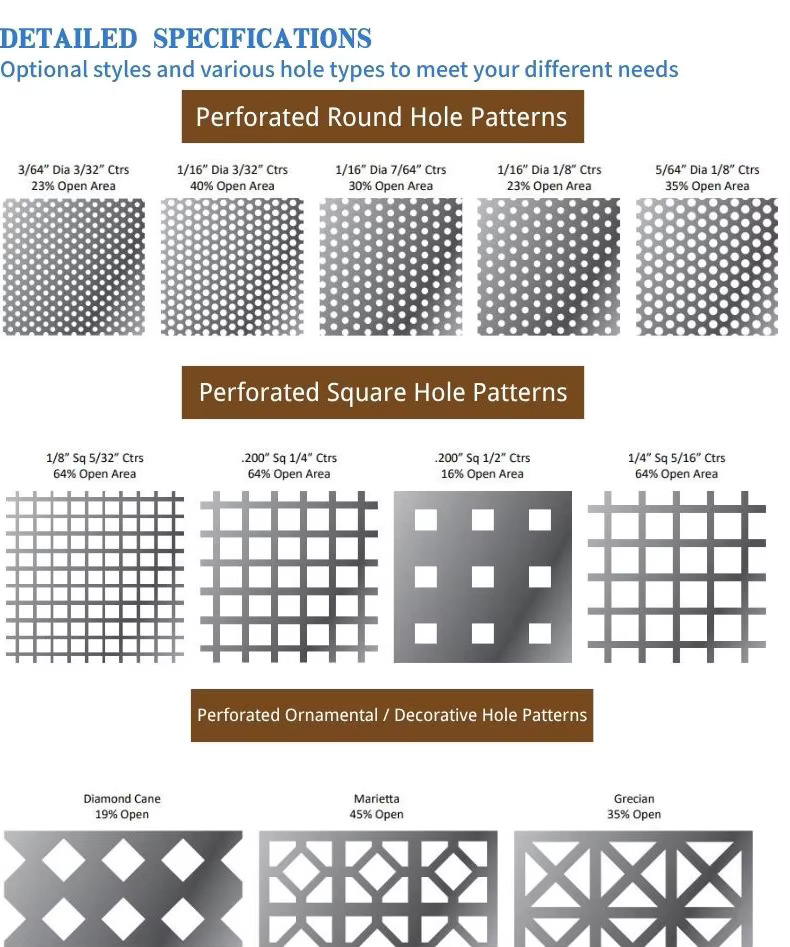

ROUND HOLES STAGGERED PATTERN
|
|
HOLE
|
CENTERS
|
GAUGE / PLATETHICK.
|
OPEN AREA
|
|
.020" RD
|
.045" Stag
|
26
|
18%
|
|
1/32" RD
|
1/16" Stag
|
22
|
23%
|
|
3/64" RD
|
5/64" Stag
|
24
|
33%
|
|
3/64" RD
|
3/32" Stag
|
22 thru 18
|
23%
|
|
1/16" RD
|
3/32"Stag
|
22 thru 16
|
40%
|
|
1/16" RD
|
7/64" Stag
|
20 thru 16
|
30%
|
|
1/16" RD
|
1/8" Stag
|
26 thru 16
|
23%
|
|
5/64" RD
|
1/8" Stag
|
22 thru 14
|
35%
|
|
3/32" RD
|
5/32" Stag
|
24 thru 14
|
33%
|
|
3/32" RD
|
3/16" Stag
|
24
|
23%
|
|
.117 RD
|
5/32" Stag
|
18
|
51%
|
|
1/8" RD
|
3/16" Stag
|
24 thru 11
|
40%
|
|
1/8" RD
|
7/32" Stag
|
14 thru 12
|
30%
|
|
1/8" RD
|
1/4" Stag
|
14, 13
|
23%
|
|
9/64" RD
|
3/16" Stag
|
18
|
51%
|
|
5/32" RD
|
3/16" Stag
|
22 thru 16
|
63%
|
|
5/32" RD
|
1/4" Stag
|
20 thru 10
|
35%
|
|
3/16" RD
|
7/32" Stag
|
22 thru 16
|
67%
|
|
3/16" RD
|
1/4" Stag
|
24 thru 12
|
51%
|
|
3/16" RD
|
5/16" Stag
|
10, 3/16"
|
33%
|
|
3/16" RD
|
3/8" Stag
|
14 thru 10
|
23%
|
|
1/4" RD
|
5/16" Stag
|
20 thru 16
|
58%
|
|
1/4" RD
|
3/8" Stag
|
26 thru 1/4"
|
40%
|
|
17/64" RD
|
5/16" Stag
|
20
|
66%
|
|
5/16"RD
|
7/16" Stag
|
20 thru 1/4"
|
46%
|
|
3/8" RD
|
9/16" Stag
|
20 thru 1/4"
|
40%
|
|
1/2" RD
|
11/16" Stag
|
20 thru 1/4"
|
48%
|
|
1/2" RD
|
3/4" Stag
|
16
|
40%
|
|
5/8" RD
|
7/8" Stag
|
10 thru 1/4"
|
46%
|
|
3/4" RD
|
1" Stag
|
16 thru 1/4"
|
51%
|
|
1" RD
|
1-3/8" Stag
|
10 thru 1/4"
|
48%
|
|
1-1/4" RD
|
1-5/8" Stag
|
1/4"
|
54%
|
|
1-1/2" RD
|
2" Stag
|
1/4"
|
51%
|
|
2" RD
|
2-1/2" Stag
|
1/4"
|
58%
|
|
2-1/2" RD
|
3" Stag
|
3/16"
|
63%
|
|
3" RD
|
3-1/2" Stag
|
3/16"
|
67%
|
|
4" RD
|
4-1/2" Stag
|
10
|
72%
|
Note: Special size and specification can be customized.
Applications of Perforated Sheets
Industry:
-
Filtration
-
Water management and filtration
-
Automotive and mobility
-
Electronics
-
Sound and acoustics industry
-
Chemical and pharmaceutical industries
-
Mining, extraction, and construction industries
-
Food industry
-
Agriculture and livestock
-
Home and appliances
Architecture and Construction:
-
Facade claddings
-
Fencing
-
Movable walls
Perforated Sheets are metal metal or coils produced through a cold mechanical punching process that creates holes of various sizes and shapes. This method ensures products of high quality with excellent levels of precision, uniformity, and customization possibilities.
These metal feature an array of holes distributed across their surface, either uniformly or customized to your specifications. The holes can vary in shape and size, including circular, square, rectangular, hexagonal, oval, or decorative designs.
