3D Fence form China factory for Residential houses, Public playgrounds, Schools, public gardens and

3D Security Fence - More Beautiful, Durable and Structurally Stable Curved Welded Mesh

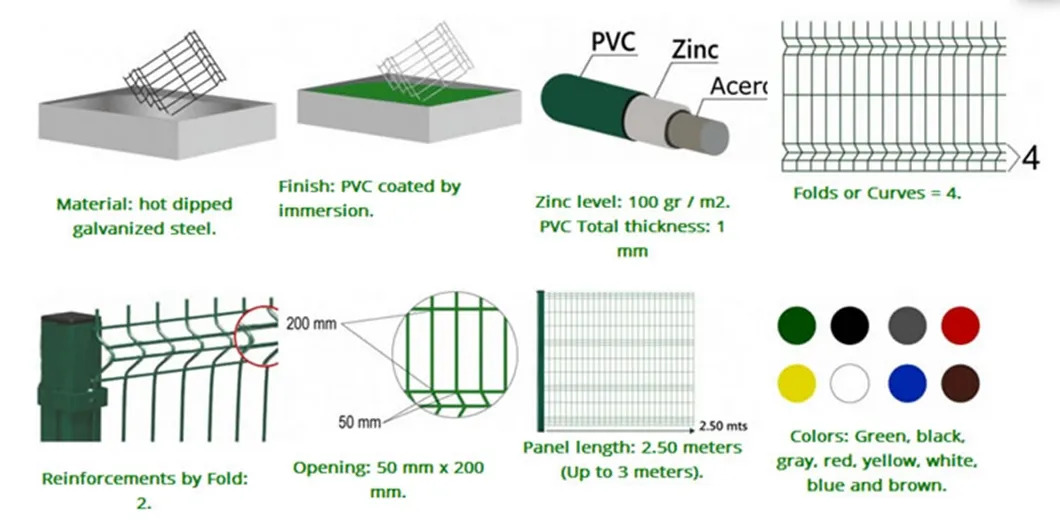

3D security fence, also called curvy security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc. It is easy to install 3D security fence. Welded wire 3D security fence can not only be installed on the earth, it can also be installed on the concrete ground for different applications.

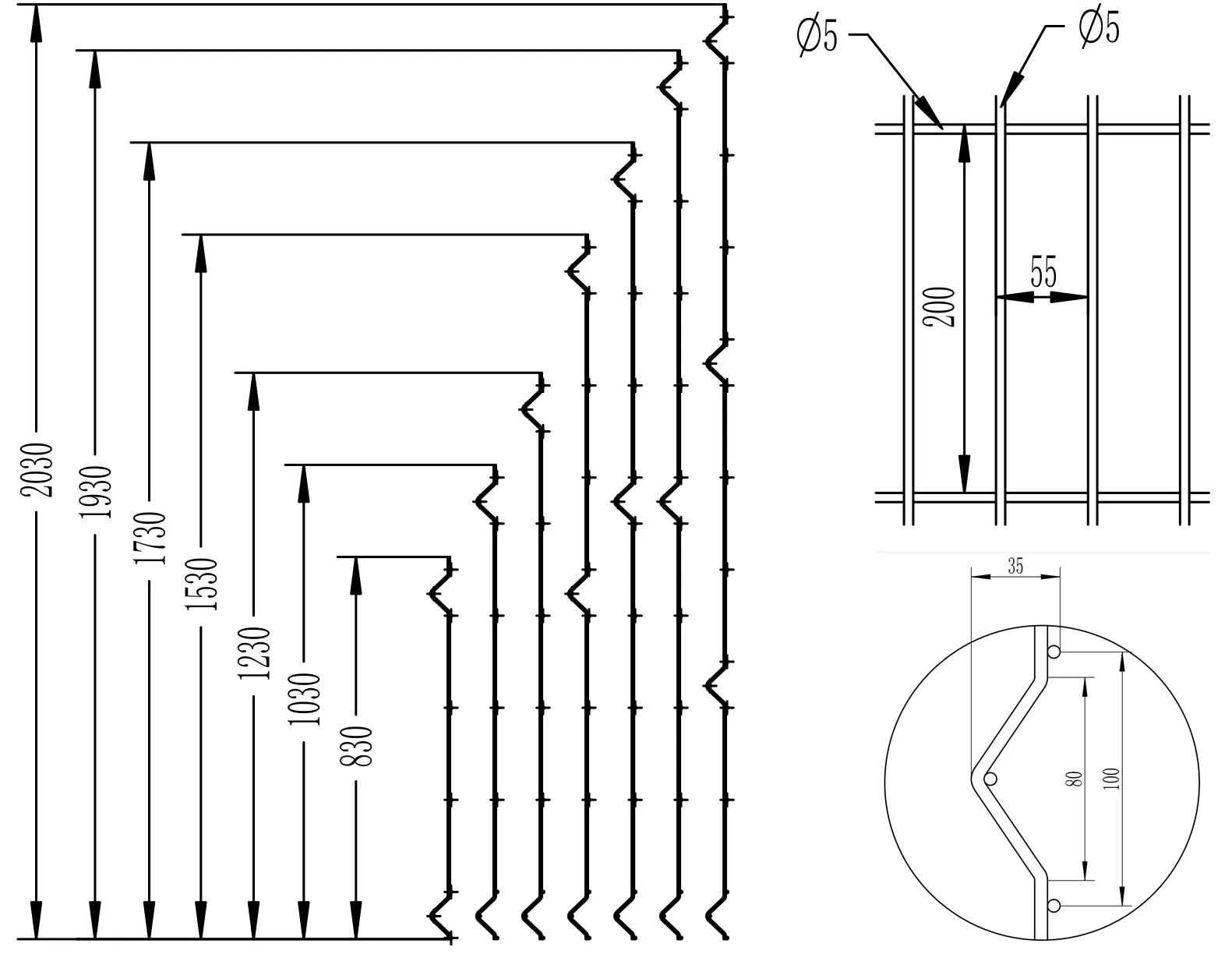

Wire diameter	Mesh size	Length	Height	Fold No.	Common color	Post Type
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm	50200mm 55200mm 50100mm 75150mm	2000mm 2200mm 2500mm 3000mm	1230mm 1530mm 1830mm 2030mm 2230mm 2430mm	2 2 3 3 4 4	Green RAL6005 Black RAL9005 White RAL9010 Grey RAL7016	square post, round post, rectangle post, peach post I post dutch post

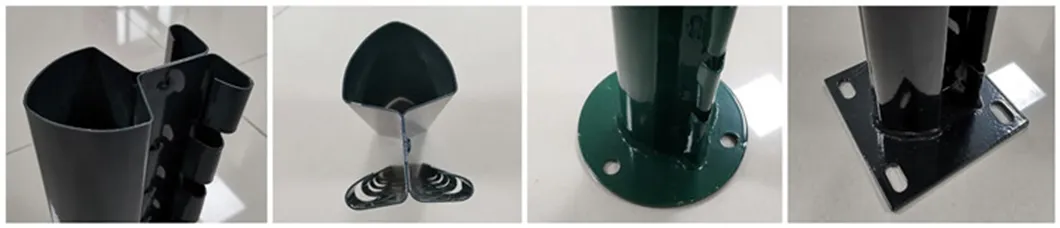

Peach Post
Size	Thickness	Panel height	Base post	Normal post	Surface treatment
50x70mm	1.0mm 1.1mm 1.2mm	830mm	850mm	1200mm	Galvanized tube PVC coated
		1030mm	1050mm	1400mm
		1230mm	1250mm	1600mm
		1530mm	1550mm	2000mm
70x100mm		1830mm	/	2400mm
		2030mm	/	2500mm
		2230mm	/	2800mm
		2430mm	/	3000mm

APPLICATIONS:

Lighter Industrial/factory perimeter
Storage and warehouse areas
Residential houses
Public playgrounds
Schools, public gardens and parks
Sport fields and stadiums
Airports, army bases and borders
Other lighter perimeter security areas
