Welded Gabion Box use for

Galvanized gabion basket is widely used in landscaping and civil engineering projects for decorative or stability purposes.
We offer both woven and weld gabion wire mesh for sale. It is available in various wire diameters, mesh hole sizes, and mesh sizes. Also, our gabion mesh is galvanized or PVC-coated to protect it from rusting. The galvanized gabion box is silver-colored.
If you want more color options, you can also choose PVC-coated gabions. Welcome to Contact us for more!

Weave Gabion baskets
Material	galvanized wire ,galfan wire and PVC coated wire
Gabion mesh wire	2.2mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm,etc.
Gabion selvedge wire	2.4mm,2.7mm,3mm,3.4mm,4mm,etc.
Gabion lacing wire	normally 2.2mm
Gabion box mesh hole	68cm,79cm,810cm,1012cm,1113cm,1215cm,etc.
Zinc coating	40-260g/m2
Gabion box PVC color	darkgree, gray ,black , etc.

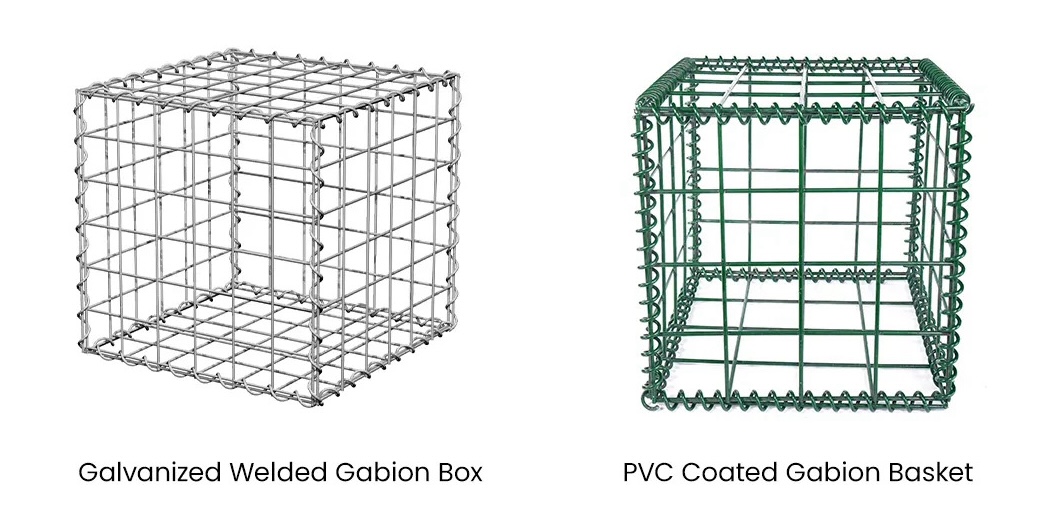

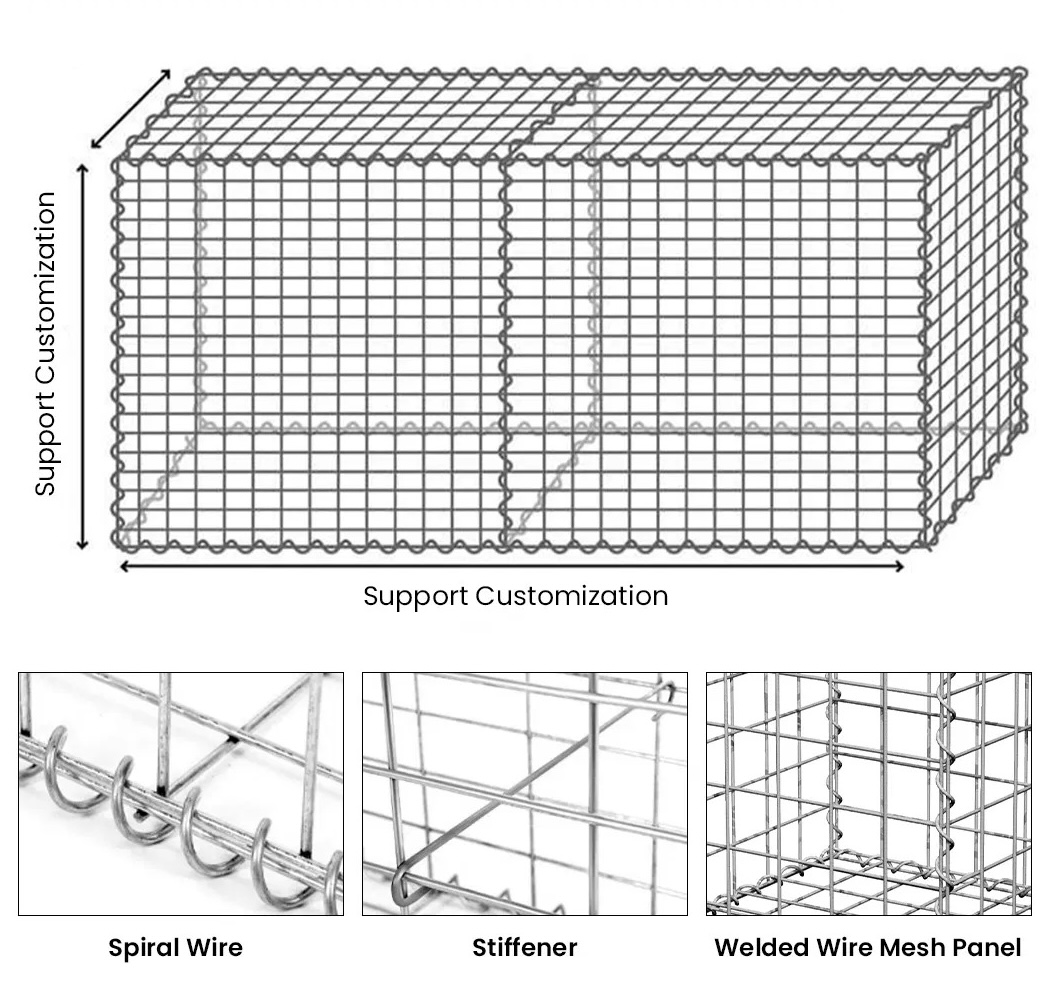

Welded gabion box
Finishing	heavy duty galvanized or galfan galvanized
Surface treatment	electro galvanized, hot-dipped galvanized, pvc coated, stainless steel
Wire diameter	2.7--5mm
Mesh size/opening	37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm
Zinc coating	40-290g/mm2

Specification Of Gabion Basket
Gabion size (m)	Wire diameter			Mesh opening	Surface treatment
	Mesh wire (mm)	Selvage wire (mm)	Tie wire (mm)
2×1×0.5	2.0 2.2 2.4 2.7 3.0	2.4 2.7 3.0 3.4 3.9	1.8 2.0 2.2	60 x 80mm 80 x 100mm 80 x 120mm 100 x 120mm 120 x 150mm	Galvanized Galfan PVC coated PE coated
2×1×1.0
3×1×0.5
3×1×1.0
4×1×1.0
6×1×1.0
2×1×0.3(Mattress)
3×1×0.3(Mattress)
All sizes can customized according to your request

Welded Mesh Gabions – Key Applications

Welded mesh gabions are valued across industries for their robustness, versatility, and ease of assembly. Below are their primary applications:

1. Civil Engineering

Retaining Walls: Used to hold back soil and prevent erosion in various construction projects.

Erosion Control: Absorb and deflect water energy to protect riverbanks, shorelines, and slopes.

Bridge Protection: Placed around bridge abutments to stabilize structures and prevent erosion.

2. Architectural Applications

Cladding: Serve as aesthetic and functional building facades.

Fencing: Provide durable, visually appealing fences when filled with stone or other materials.

Sound Barriers: Act as effective noise barriers along highways and in residential areas due to their mass and flexibility.

3. Landscape Design

Garden Features: Used to create benches, fountains, planters, and other decorative structures.

Decorative Walls: Enhance visual appeal in public parks and private properties.

4. Military Use

Fortification: Deployed as Hesco barriers for rapid blast and ballistic protection.

5. Environmental Conservation

Habitat Creation: Support biodiversity by providing wildlife habitats, particularly in aquatic environments.

Flood Control: Help manage flood situations by resisting and redirecting water flow.

6. Mining Industry

Slope Stabilization: Prevent landslides and protect workers in mining regions.

Mining Tunnels: Stabilize and secure tunnels for safe passage.

7. Railway Works

Track Stabilization: Reinforce railway tracks in areas prone to landslides or erosion.

Embankment Protection: Safeguard railway embankments to maintain track stability.

8. Agricultural Applications

Windbreaks: Shield crops and soil from strong winds.

Livestock Barriers: Provide durable, effective enclosures for animals.

Adaptability
The adaptability of welded mesh gabions—combined with their durability and ecological compatibility—makes them a preferred choice across industries. Depending on project requirements, they can be filled with rock, concrete, or recycled materials, further enhancing their utility and versatility.
