Expanded Metal Mesh
Product Introduction
Expanded steel mesh is a metal screen, also known as expanded metal mesh, diamond mesh, iron mesh, expanded metal mesh, heavy steel mesh, foot mesh, aluminum mesh, stainless steel mesh, granary mesh, antenna mesh, filter mesh, and audio mesh wait.
Material: low carbon steel plate, stainless steel plate, aluminum plate, copper plate, nickel plate, magnesium plate, aluminum-magnesium alloy plate and other metal plates.
Surface treatment: PVC dipping (plastic spraying, plastic coating), hot-dip galvanizing, electro-galvanizing, anodizing (aluminum plate), anti-rust paint spraying, etc.
Classified by material: low carbon steel sheets, aluminum plates, stainless steel plates, aluminum-magnesium alloy plates, steel plates, and other plates.
Classified by use: widely used in highways, railways, civil buildings, water conservancy and other construction, various machinery, electrical appliances, window protection and aquaculture, etc. Products with various special specifications can be processed and customized according to customer requirements.

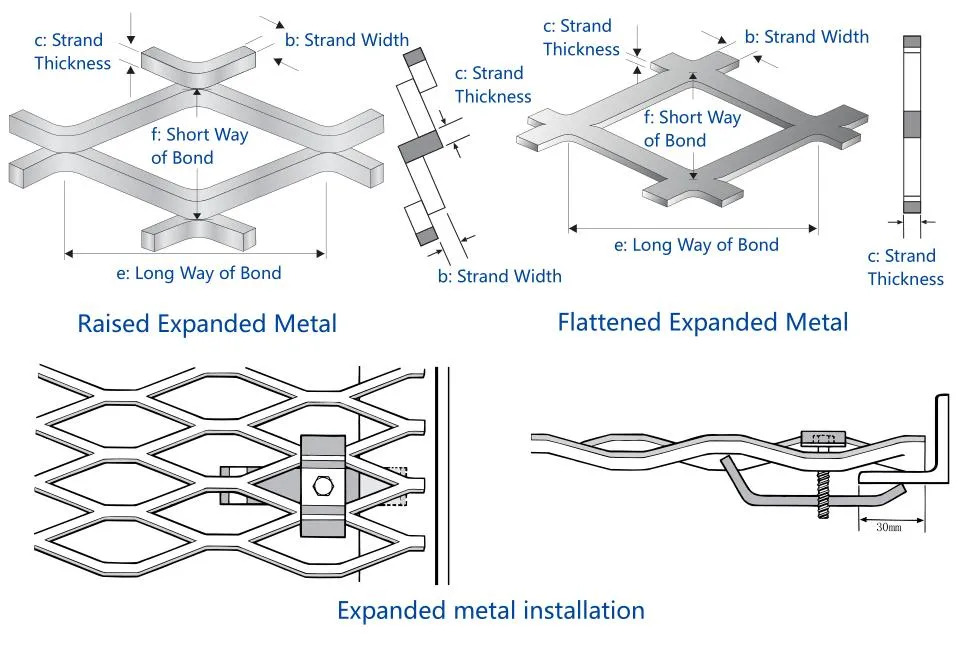

| Item | Mesh Thickness (mm) | Distance Short (mm) | Distance Long (mm) | Strip (mm) | Width (m) | Length (m) | Weight (kg/m2) |
|---|---|---|---|---|---|---|---|
| EMM-1 | 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1.0 | 1.80 |
| EMM-2 | 0.5 | 10 | 25 | 0.5 | 0.6 | 2.0 | 0.73 |
| EMM-3 | 0.6 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.00 |
| EMM-4 | 0.8 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.25 |
| EMM-5 | 1.0 | 10 | 25 | 1.1 | 0.6 | 2.0 | 1.77 |
| EMM-6 | 1.0 | 15 | 40 | 1.5 | 2.0 | 4.0 | 1.85 |
| EMM-7 | 1.2 | 10 | 25 | 1.1 | 2.0 | 4.0 | 2.21 |
| EMM-8 | 1.2 | 15 | 40 | 1.5 | 2.0 | 4.0 | 2.30 |
| EMM-9 | 1.5 | 15 | 40 | 1.5 | 1.8 | 4.0 | 2.77 |
| EMM-10 | 1.5 | 23 | 60 | 2.6 | 2.0 | 3.6 | 2.77 |
| EMM-11 | 2.0 | 18 | 50 | 2.1 | 2.0 | 4.0 | 3.69 |
| EMM-12 | 2.0 | 22 | 60 | 2.6 | 2.0 | 4.0 | 3.69 |
| EMM-13 | 3.0 | 40 | 80 | 3.8 | 2.0 | 4.0 | 5.00 |
| EMM-14 | 4.0 | 50 | 100 | 4.0 | 2.0 | 2.0 | 11.15 |
| EMM-15 | 4.5 | 50 | 100 | 5.0 | 2.0 | 2.7 | 11.15 |
| EMM-16 | 5.0 | 50 | 100 | 5.0 | 1.4 | 2.6 | 12.39 |
| EMM-17 | 6.0 | 50 | 100 | 6.0 | 2.0 | 2.5 | 17.35 |
| EMM-18 | 8.0 | 50 | 100 | 8.0 | 2.0 | 2.1 | 28.26 |
Application
Expanded metal mesh is used in security fencing, industrial flooring, walkways, machine guards, architectural cladding, sunshades, filtration systems, and decorative projects due to its strength, ventilation, and versatility of opening patterns.
