Crowd Control Barrier
Crowd control barriers are essential tools for managing large crowds at events, construction sites, and public spaces. They help guide pedestrian traffic, ensure safety, and create designated areas. These barriers are built from durable materials and offer different base and customization options to suit various needs.
We offer a wide range of crowd control barriers in different sizes and designs, built with strong steel frames and infill panels that add extra strength and keep lines straight on site. Whether it’s for temporary events or long-term construction projects, our crowd control barriers provide reliable, repeatable control. The feet options—including flat feet, welded fixed feet, and bridge feet—help maintain stability across asphalt, concrete, and uneven ground. Most buyers reach a point where they also need to decide where to buy crowd control barriers for the right mix of stock availability, compliance, and delivery speed, especially when timelines are tight.
Product Name: Crowd Control Barrier
Material: Galvanized tube
Surface Treatment: Hot dipped galvanized
Panel Size: 914x2440mm, 1090x2000mm, 1090*2010mm
Frame: 20mm, 25mm, 32mm, 40mm, 42mm, 48mm OD
Infill Picket: 12mm, 14mm, 16mm, 20mm OD
Spacing: 100mm, 120mm, 190mm, 200mm
Feet: Flat feet, bridge feet, tube feet
Application: Public events, sports, concerts
Assembly: By Interlock Hooking System
Price: 18.22$-49.11$ per kit
HS Code: 73144900
General Crowd Control Barrier Specifications
| Frame (OD × T, mm) | Infilled Pipe (OD × T, mm) | Panel Width (m) | Panel Height (m) | Foot | Surface Treatment |
|---|---|---|---|---|---|
| 32 × 1.2 | 12 × 0.7 | 2.0 | 1.1 | Welded on the frame or removable | Hot dipped galvanized |
| 38 × 1.2 | 14 × 1.0 | 2.1 | 1.25 | Welded on the frame or removable | Galvanized + powder coated |
| 42 × 1.2 | 16 × 1.0 | 2.2 | 1.5 | Welded on the frame or removable | Hot dipped galvanized |
| 48 × 1.2 | 20 × 1.2 | 2.4 | 1.5 | Welded on the frame or removable | Galvanized + powder coated |
| 48 × 1.5 | 25 × 1.2 | 2.5 | 1.5 | Welded on the frame or removable | Hot dipped galvanized |
Australian Crowd Control Barriers Specifications
| Specification | 25mm Series Heavy Duty | 25mm Series Light Duty | 32mm Series Heavy Duty | 32mm Series Light Duty |
|---|---|---|---|---|
| Panel Size (H × L, mm) | 1100 × 2100 | 1100 × 2100 | 1100 × 2100 | 1100 × 2100 |
| Frame Tube (OD × T, mm) | 25 × 2.00 | 25 × 1.50 | 32 × 2.00 | 32 × 1.50 |
| Upright Tube (OD × T, mm) | 20 × 1.50 | 20 × 1.20 | 14 × 1.50 | 14 × 1.20 |
| Number of Upright Tubes | 9 pcs | 9 pcs | 17 pcs | 17 pcs |
| Spacing Between Uprights (mm) | 185 | 185 | 100 | 100 |
| Base / Feet | Flat steel base 500 × 50 × 10 mm | Flat steel base 500 × 50 × 10 mm | Flat steel base 500 × 50 × 10 mm | Flat steel base 500 × 50 × 10 mm |
| Weight (kg) | 18 | 15 | 22 | 18 |
| Treatment Available | Hot dipped galvanized / Pre-galvanized / Polyester powder coated | Hot dipped galvanized / Pre-galvanized / Polyester powder coated | Hot dipped galvanized / Pre-galvanized / Polyester powder coated | Hot dipped galvanized / Pre-galvanized / Polyester powder coated |
| Kit Components | 1 panel + 2 flat feet | 1 panel + 2 flat feet | 1 panel + 2 flat feet | 1 panel + 2 flat feet |
American Crowd Control Barriers Specifications
| Panel Length (ft / m) | Panel Height (in / mm) | Frame Tube (OD × T, mm) | Inner Tube (OD × T, mm) | Inner Tube Distance (mm) | Feet Specifications | Surface Treatment |
|---|---|---|---|---|---|---|
| 6.5′ / 1.98 m | 36″ / 914 mm | Φ38 × 1.5 | Φ12 × 1.2 | 110 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
| 7.0′ / 2.13 m | 40″ / 1016 mm | Φ38 × 1.8 | Φ12 × 1.5 | 120 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | PVC coated after galvanized (after welding) |
| 7.5′ / 2.29 m | 47″ / 1194 mm | Φ38 × 2.0 | Φ16 × 1.5 | 150 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
| 8.0′ / 2.44 m | 60″ / 1524 mm | Φ38 × 1.5 | Φ12 × 1.2 | 110 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
| 8.5′ / 2.59 m | 60″ / 1524 mm | Φ38 × 2.0 | Φ16 × 1.5 | 150 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | PVC coated after galvanized (after welding) |
European Crowd Control Barriers Specifications
| Panel Length (m) | Panel Height (mm) | Frame Tube (OD × T, mm) | Inner Tube / Rod | Inner Tube Distance (mm) | Feet Specifications | Surface Treatment |
|---|---|---|---|---|---|---|
| 2.0 | 900 | Φ38 × 1.5 | Φ16 × 1.2 | 110 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
| 2.2 | 1000 | Φ38 × 1.8 | Φ16 × 1.5 | 120 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
| 2.5 | 1100 | Φ38 × 2.0 | Φ12 mm steel rod | 150 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
| 2.5 | 1200 | Φ48 × 1.5 | Φ12 mm steel rod | 150 | Flat: 50×580×6 mm; Bridge: 675×500 mm; V-feet height: 270 mm | Hot-dipped galvanized (after welding) |
Customized Crowd Control Barrier (1200mm & 2000mm)

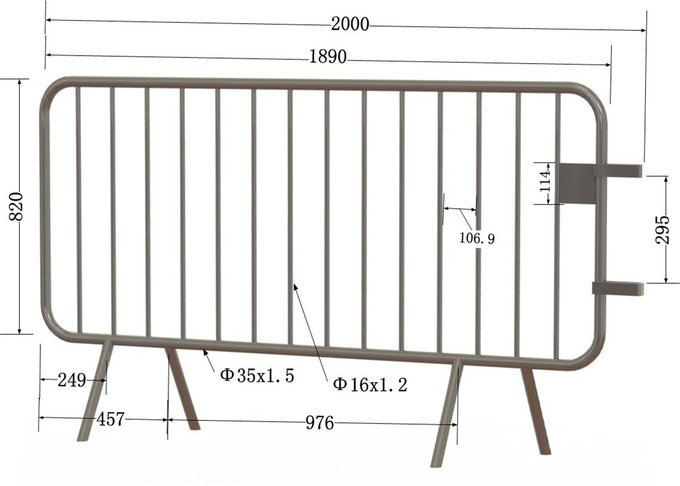

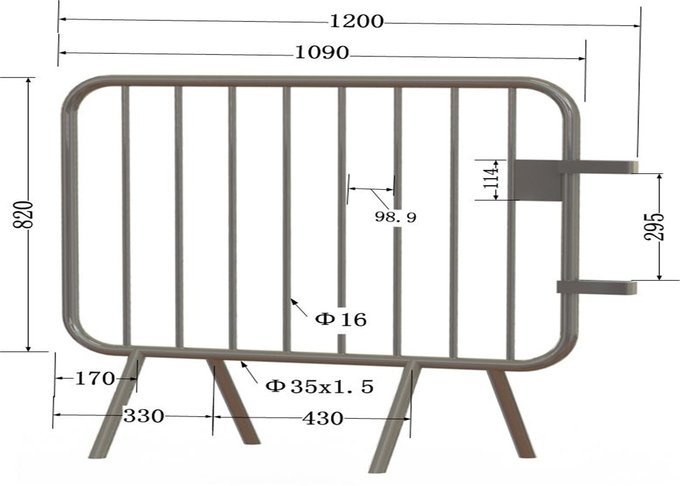

| 1200mm Width Belgium Crowd Control Barrier | 2000mm Width Belgium Crowd Control Barrier |
|---|---|
 1200mm Width Crowd Control Barriers |  2000mm Width Crowd Control Barriers |
| Specification | 1200mm Width (mm) | 2000mm Width (mm) |
|---|---|---|
| Overall Height | 820 | 820 |
| Overall Width | 1200 | 2000 |
| Inner Width | 1090 | 1890 |
| Frame Diameter × Thickness | Ø35×1.5 | Ø35×1.5 |
| Inner Pipe Diameter | Ø16 | Ø16×1.2 |
| Feet Length | 430 | 976 |
| Feet Width | 330 | 457 |
| Distance Between Feet | 170 | 249 |
| Locking Space | 98.9 | 106.9 |
| Hook Length | 114.1 | 114.1 |
| Hook Gap | 295 | 295 |
| Total Height | 1050 | 1050 |
Applications Crowd control barriers
Public Events and Gatherings: Crowd control barriers are used to manage pedestrian traffic during large public events, such as concerts, festivals, and parades. They help create clear pathways and control the movement of people.
Construction Sites: The barriers are placed around construction sites to ensure safety by keeping unauthorized personnel out and directing pedestrian flow around the work zone.
Road and Traffic Management: Barriers are deployed on roads to manage and direct traffic during construction, repairs, or events that require rerouting vehicles and pedestrians.
Parks and Public Spaces: Crowd control barriers are used in parks to section off areas, create designated pathways, and protect certain spots from being accessed by the public.
Sidewalk and Street Work: Barriers help create a protective buffer between ongoing street work or sidewalk repairs and pedestrians. They prevent people from entering dangerous areas.
Event Venues and Sports Grounds: At sporting events, barriers ensure the separation of different zones, such as spectator areas, VIP sections, and player entry points.
