Stainless steel wire mesh use for jet engine lubricant filters or high-pressure hydraulic filters

Stainless steel wire mesh, also known as woven wire mesh or stainless steel weaving mesh, is a popular material used in industrial and commercial applications primarily because of its outstanding corrosion resistance, durability, and strength.

The wire mesh is made out of stainless steel wire that has been woven into a net-like pattern, creating a regular and consistent mesh pattern with precise openings and sizes.Stainless steel wire mesh is commonly used for filtration, separation, and sieving processes in industries such as pharmaceuticals, chemical processing, food and beverage production, and oil and gas. It is also used for architectural purposes such as in window screens and fencing.

Stainless steel wire mesh comes in various grades, including 302,304,316, and 316L. etc.Each grade has its own specific
properties and is chosen based on the application and environmental conditions.

Woven Wire Mesh Overview We have the most complete range of material grades and sizes to customize woven wire mesh.
Stainless Steel Grade:	SS304, 316, 904L, 430, 310s, 2205, etc
Aluminum Alloy:	6061, 5056, 5052
Copper:	Pure Copper, Brass, Bronze
Special Materials:	Nickel, Titanium, Silver, Tungsten, Molybdenum, Monel, Inconel, Nichrome, Hastelloy
Weave Types:	Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, etc
Wire Diameter Range:	0.016-0.5mm
Width Range:	Maximum 6m, usually the width is 1m
Length Range:	Maximum 50m, usually the length is 30m/roll
Mesh Type:	Rolls and sheets are available

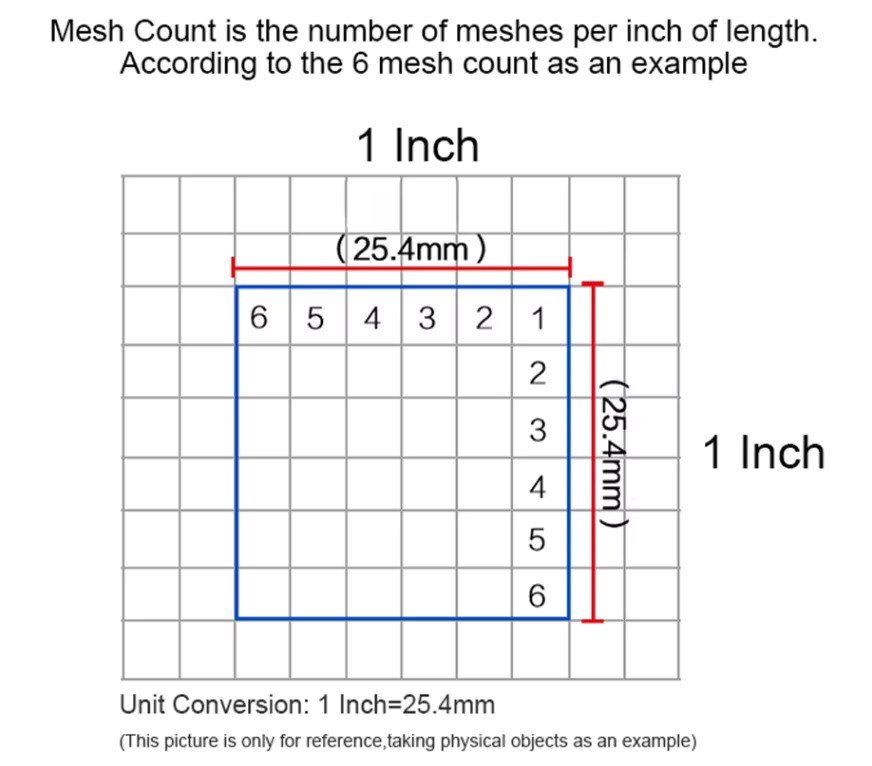

The Mesh count is calculated by the number of holes in an inch of mesh, so the smaller the woven holes the bigger the number of holes.
The Micron Size refers to the size of the holes measured in microns. (The term micron is actually a commonly used shorthand for micrometer. )
In order to make it easier for people to understand the number of holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.

More intuitive expression:
Mesh Count = number of mesh hole. (The larger the mesh count, the smaller the mesh hole)
Micron Size = size of mesh hole. (The larger the micron size, the larger the mesh hole)

Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	--	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385
Technical Note: 1.Standard roll length:15.24m, 30m, 30.5m, 61m 2.Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3.Special sizes available at request 4.Packing:In waterproof paper, PVC bag, wooden case.Custom packing available at request. 5. If you did not find the mesh you want, please contact us.

Application

Stainless steel filter wire mesh are ideal for use in demanding engineering specifications that require filtration in adverse environmental conditions, such as jet engine lubricant filters or high-pressure hydraulic filters. Stainless mesh is used in all kinds of auto filters, chemical, rubber and plastic products and decorations. What's more, stainless mesh can be rinsed and reused, and is washable for years of use.

Stainless Steel Wire Mesh
